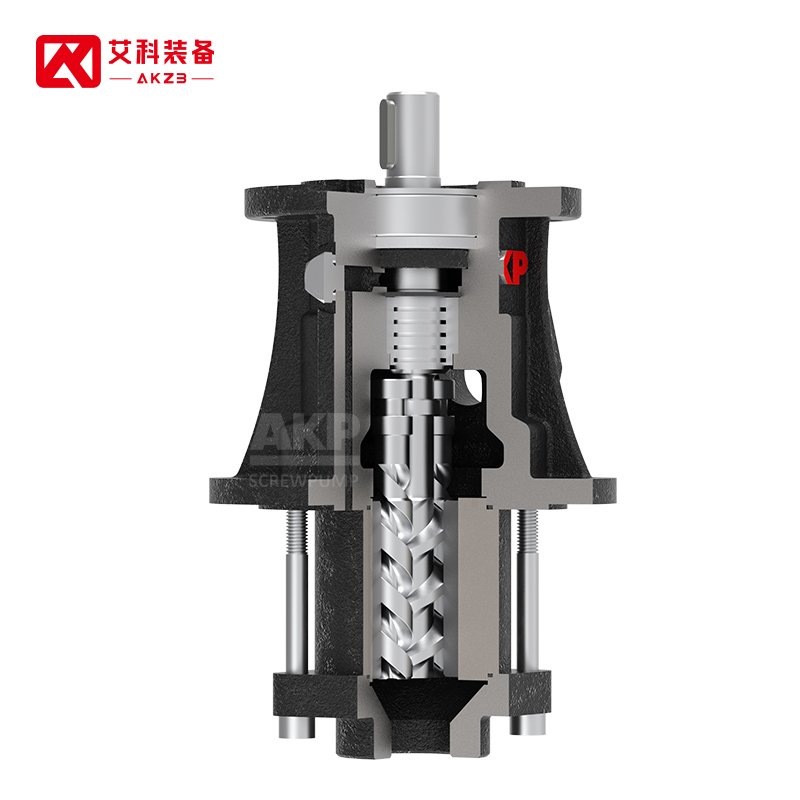

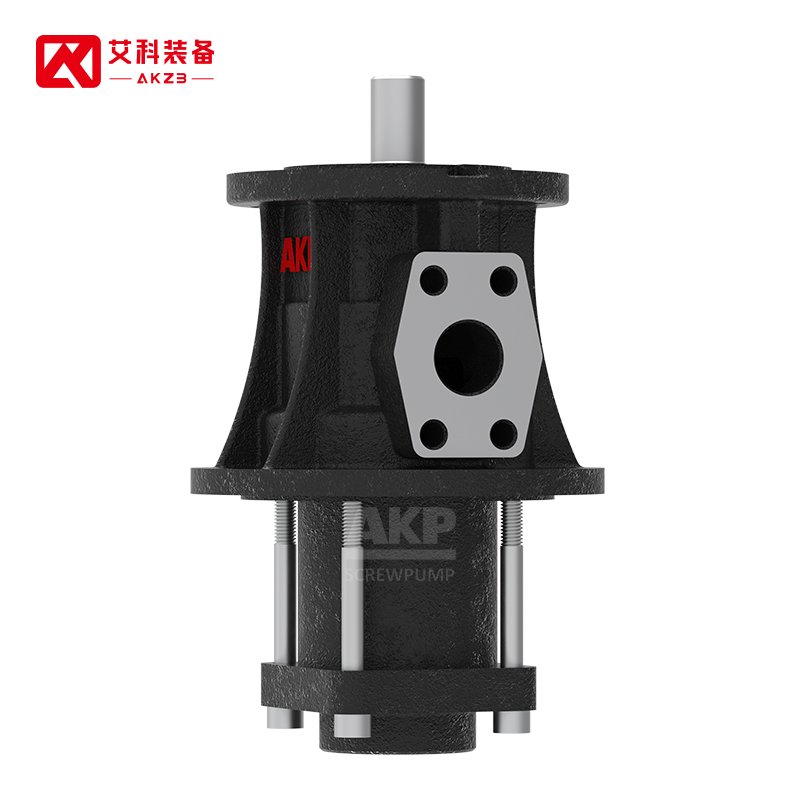

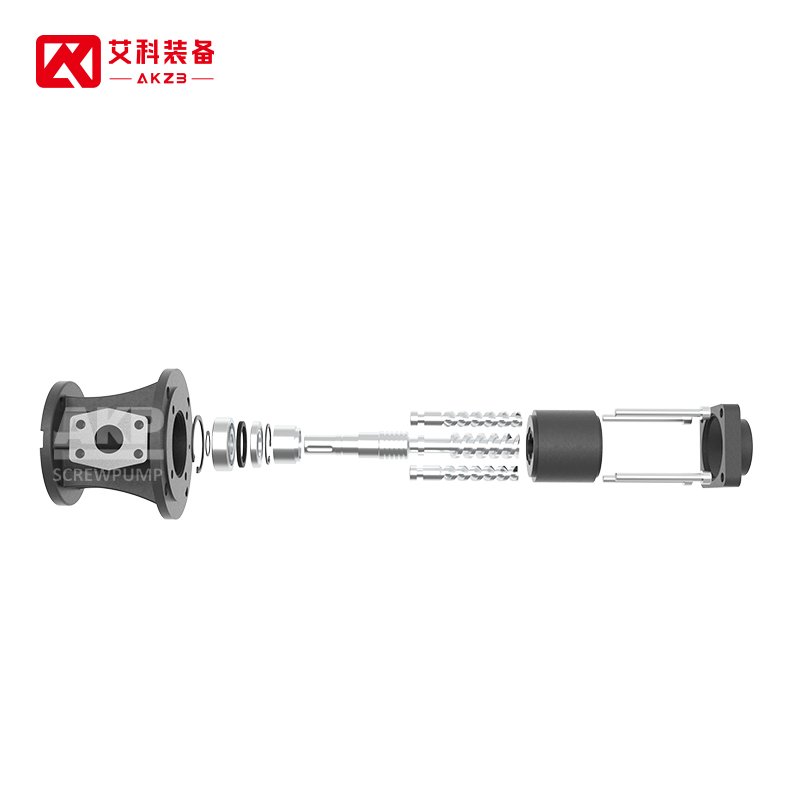

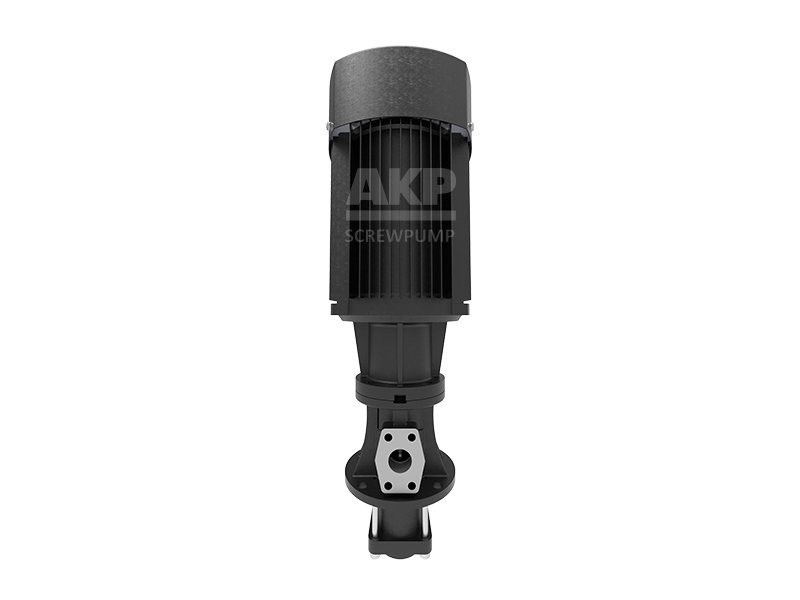

A3NK Series High Pressure Coolant Pumps
The A3NK-Z series screw pumps have obvious price advantages in machine tool processing applications with pressure ranging from 30 bar to 70 bar.
Description
Technical Parameters
| Series | Max. Capacity (L/min) |
Max.Outlet Pressure (bar) |
Max.Fluid Temperature (℃) |
Viscosity Range (mm²/s) |
| A3NK | 80 | 70 | 80 | 1-760 |
Product Application
A3NK-Z screw pump series, which can be applied to the High Pressure Coolant&Filtration Systems within 30-70bar, is a cost-effective machine screw pump product. The outlet pressure of 30-70bar can meet the requirements of most working conditions, and it is the standard configuration of core walking machine, tower machine, precision lathe, cutter machine, CNC three axis and five axis cooling solutions.
Product Advantages
1.A3NK screw adopts special hardening to strengthen the hardness, tensile strength, finish and precision of the screw, which can be well established in the process of conveying medium, and the establishment of the oil film is the basis of ensuring the operation life of the pump
2.A3NK screw pump, standard ceramic lining, higher wear resistance to ensure service life
Selection Guide
To provide a more suitable pump, we need to understand as much detailed information as possible. You can request the working condition survey form from me. If you are replacing an existing pump, you can provide me with the original product model or nameplate.
