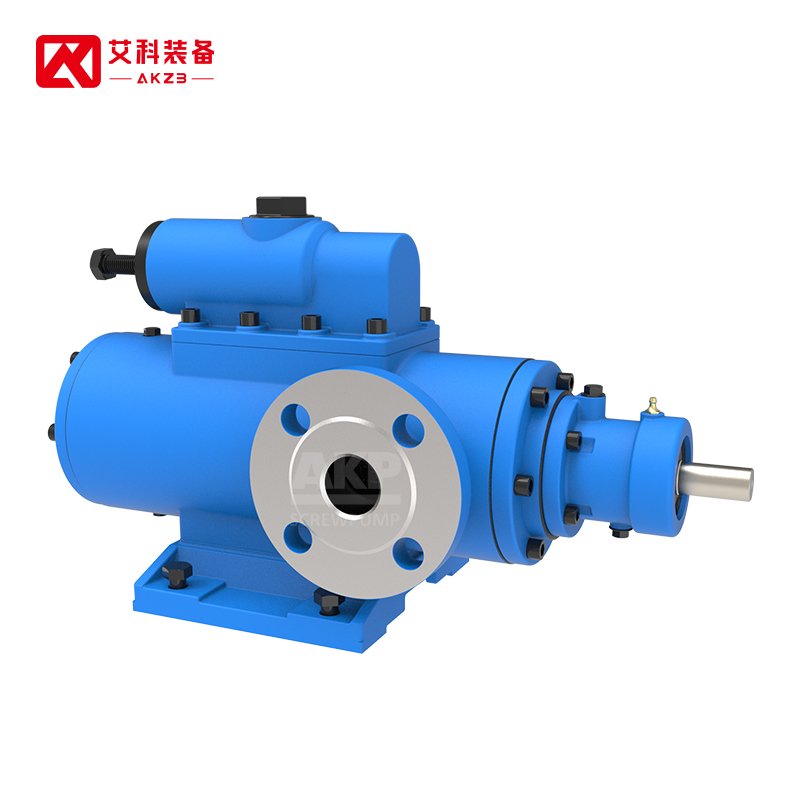

A3MG Series Three-Screw Pumps
The A3MG three-screw pump is a high-pressure screw pump from AKP. Thanks to its structural design and material selection, the A3MG offers significant advantages in high-pressure delivery of low-viscosity fluids.Typical applications of the A3MG:In power plants, it is used as an ignition fuel oil supply pump, delivering fuel at high pressure to ensure complete combustion.In the tire rubber mixing industry, it serves as an aromatic oil pump.
Description
Technical Parameters
| Series | Max. Capacity (L/min) |
Max.Outlet Pressure (bar) |
Max.Fluid Temperature (℃) |
Viscosity Range (mm²/s) |
| A3MG | 5000 | 120 | 280 | 1-10000 |
Product Application
1.Fuel oil firing/energy engineering：For handling light and heavy fuel oils as well as residual and waste oils, e.g.as fuel oil, transfer，fuelling ,ring-conduit. Used as a burner jet pump on gas turbines.Used in power plants as fuel oil unloading pump, oil feed pump, booster pump, fuel injection pump, ignition supply pump, etc
2.Hydraulics：For pressurizing and pumping hydraulic oil, hydraulic lubricating oil, turbine oil. e.g. as hydraulic pumps for lifts , elevating platforms , pusher centrifuges ,hydraulic presses , forging hammers ,bale presses , chip-board presses , hoists , variable-pitch propeller and rudder adjusting units , hatch hydraulics，roiling mill and machine tool hydraulics
3.Marine/Offshore engineering:For handling Lubricating oil, hydraulic oil, light and heavy fuel oil. e.g. as main lubricating pump, auxiliary lubricating pump, emergency lubricating pump for marine diesel engine. As a fuel supply pump, it is used as a fuel supply pump and a heavy oil injection pump on the Marine boiler to provide power sources for the ship, such as the anchor mechanism dynamic pump and the steering engine steering drive pump
4.General industrial engineering/machine/heavy machine industry:For handling lubricating , cooling ,sealing and regulating. e.g. as lbricating oil pump, Lubricate and cool the machinery; e.g. for steam , gas and water turbines as crculating oil pump, regulating oil pump, control oil pump and jacking oil pump; for compressors as turbine oil pump,sealing oil pump and coolant oil pump; for diesel engine as lubricating oil pump and fuel pump, etc
5.Offshore engineering:For handling lubricating. cooling and hydraulic oils, light and heavy fuel oils, crude oils as well as fuels. e.g. for offshore drilling platform as lubricating oil pump , the hydraulic system is lubricated, circulated and cooled
6.Tank farms:For handling all lubricating fluids such as greases,oils, paints, fuels, polyols，isocyanates;e.g. as loading or unloading pumps.
7.Chemical and petro-chemical as well as processing industry:For handling all lubricating fluids such as oils (including crude oils), greases, paint, lacquers, ointments, pastes, polyols，isocyanates, tar, bitumen, glycerin, glues, adhesive substances, resins,paraffins, waxes. water glass and also as pipeline pumps
8.Tire rubber/printing/paper industry:For handling aromatics oil, gravure ink, rubber oil, and pulp. e.g. for aromatics oil pump as Rubber factory
Product Advantages
1.The A3MG series three-screw pump offers various installation methods: horizontal installation (foot & flange) or vertical installation (pedestal & deepwell).
