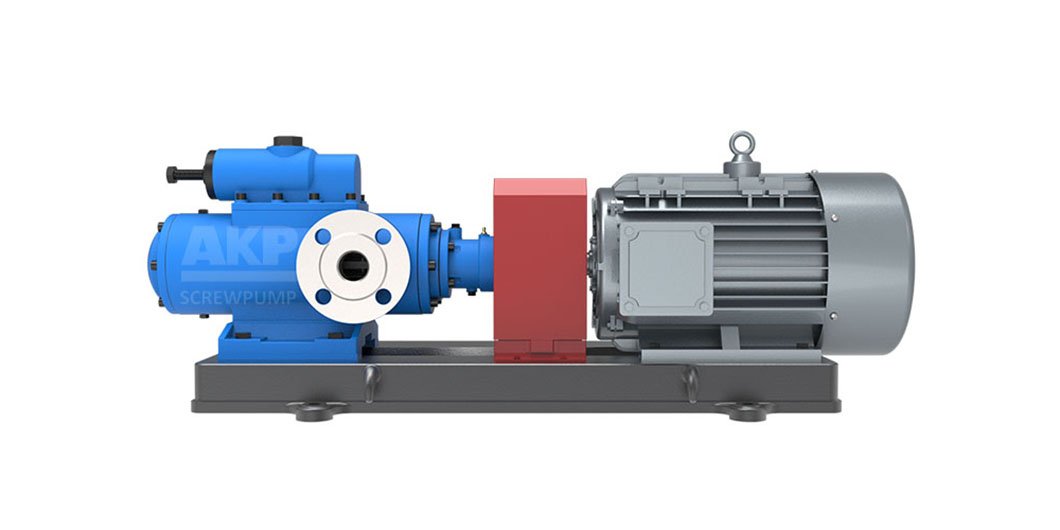

A3MG High Pressure Three-Screw Pump

Bykaermalon666@gmail.com

Aike has long been committed to expanding the extensive application of low, medium and high-pressure screw pumps. The A3MG series high-pressure three-screw pumps are mainly applied in fuel oil combustion and energy engineering fields. They are widely used in industries such as coal-fired thermal power plants, cement plants, glass factories, building materials plants, waste-to-energy power plants, coal-to-gas, coal-to-liquid, tire and rubber industries, serving as ignition oil supply pumps, fuel oil feed pumps, spray combustion atomizing pumps, start-up oil pumps, jacking oil pumps and aromatic oil pumps.

A3MG Parameters

A3MG Three-Screw Pump

Flow Rate

 10-2170 L/min 1-130 m³/h

Outlet Pressure

 10-100 bar 1-10

Mpa
Viscosity 1-15000 mm²/s 1-15000

cSt
Temperature Max.250 ℃ Max.482

℉



A3MG Advantages

1.The A3MG series three-screw pump offers various installation methods: horizontal installation (foot & flange) or vertical installation (pedestal & deepwell).

2.Unique Design: The A3MG series features a dual-support positioning design, ensuring stable operation and effectively extending service life.

3.Diversified inlet and outlet connections: According to on-site pipeline design, multiple inlet and outlet arrangement options are provided. Meanwhile, the positions of the inlet and outlet can be interchanged without changing the on-site pipeline.
4.High-temperature conveying medium: The A3MG series can be equipped with a heat preservation option to heat the heat transfer medium.
5.Leak-free sealing: A variety of sealing types are available, and sealing solutions can be customized according to requirements.
6.Cost reduction: The bushings of the A3MG series are replaceable, eliminating the need to replace all components.
