A3SS-XT2 High Pressure Coolant&Filtration Systems

Description

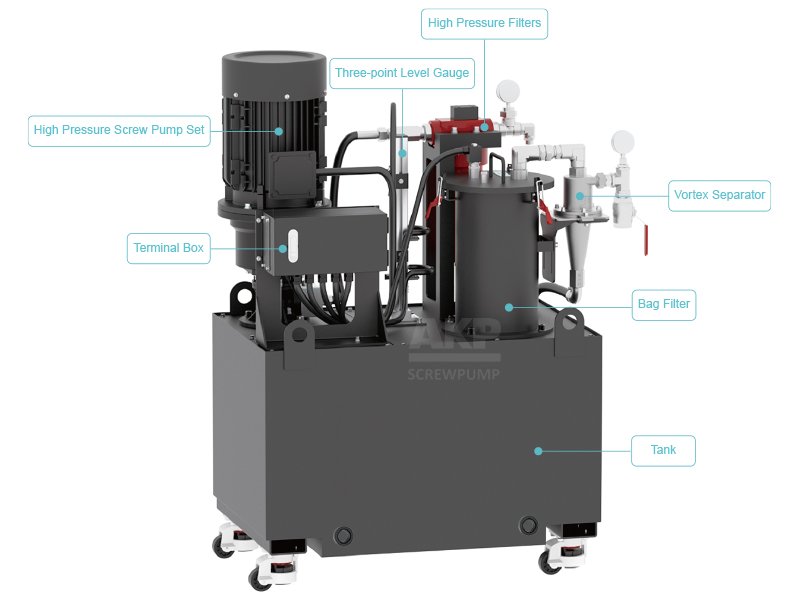

A3SS-XT2 Open High Pressure Coolant System, modular open design, more configuration options, PLC control, relay control, terminal box control, frequency converter constant voltage control, a variety of optional control methods increase more applicability. It can be configured with a variety of filter combinations, which can be freely configured according to working conditions, machine tools, and processing materials, such as optional scroll separation + bag combination filtration under good working conditions, optional magnetic separation + bag + pipeline filtration under harsh working conditions,and so on.

Typical application scenario

Optimized open interface design, compatible with vertical/horizontal machining center, turn-miling complex equipment, efficient processing verification of steel and aluminum parts, taking into account the application of light cutting of castings.

Main technical parameter and selection

1. Tank Volume                                                             900×600×550mm（300L）
2. Bulk Volume                                                              1300×600×1800mm
3. Screw Pump Installation Method                          Vertical Type
4. Lift Pump Parameter                                               Flow 4m³/h  Lift 30m
5. Pressure Regulator Type                                        Two-position Three-way Valve / Plate Pressure Regulator / Proportional Valve
6. Filter Combination                                                   Vortex Separator+Bag Filter+Line Filter
7. Filtration Accuracy                                                   25μm +10μm
8. Control Mode                                                           Terminal Box / AKP Module / Integrated PLC
