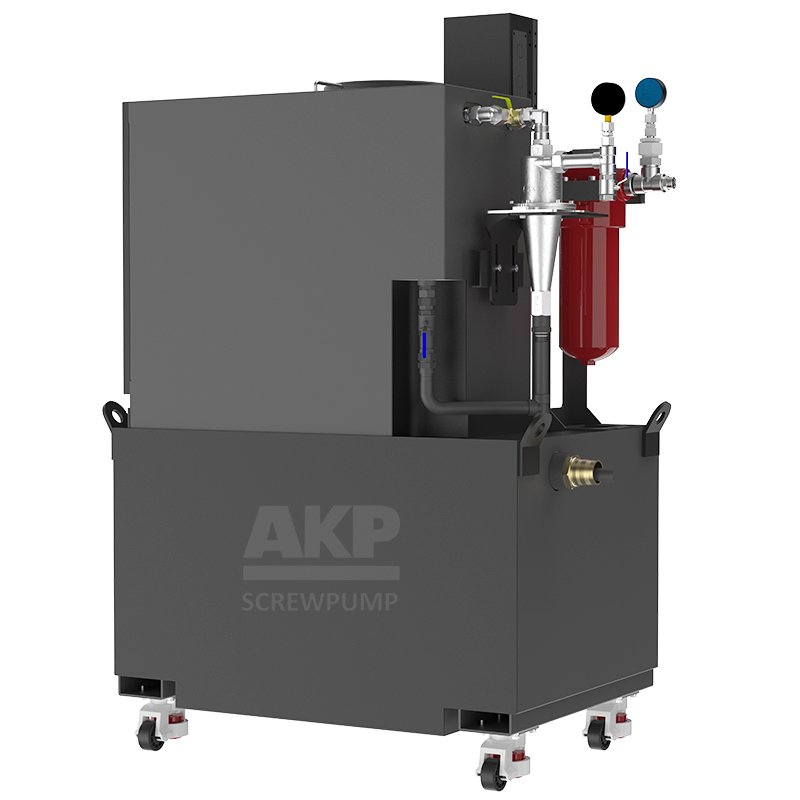

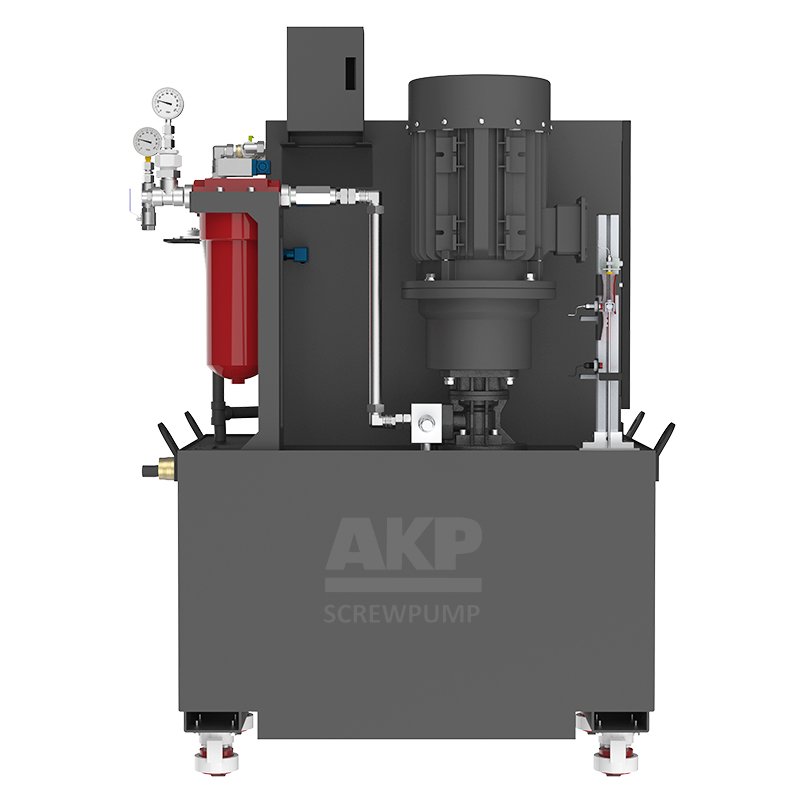

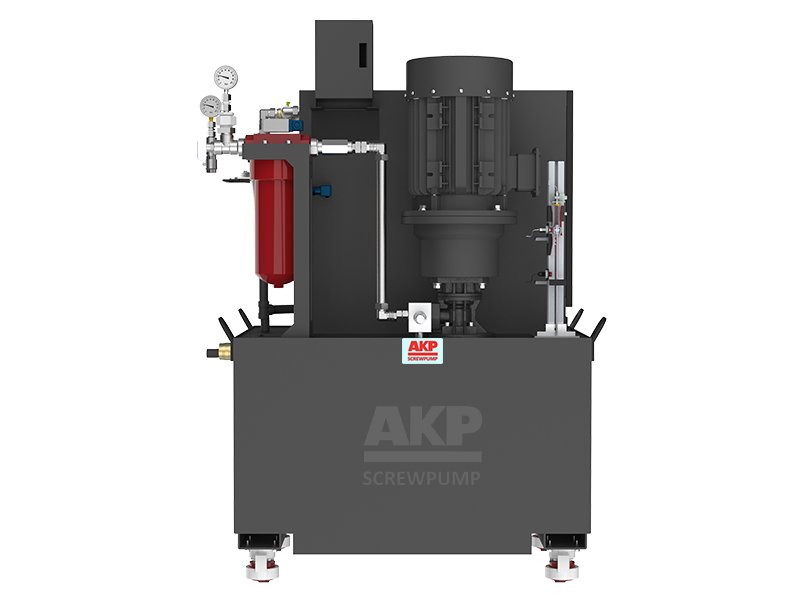

A3SS-XT13 High Pressure Coolant&Filtration System

Description

A3SS-XT13 Double Switch Bag Filter System, suitable for cast iron, steel,aluminum alloyand other processing fields,has a good filtering effecton powder chips, filtration accuracy can be customized from 15μm to 60 μm.The hanging cloth bag is ready for one use, which can bereplaced without stopping the work. Optimized design, cloth bag use ,replacement cycle longer, modulardesign supports diferent types ofmachine tools,working conditions selection and customization.

Typical application scenario

Suitable for heavy chipping conditions, vortex separator with bag filter, vertical pump assembly skid-mounted structure. Compatible with vertical/horizontal machining centers, turning and miling production ines, and suitable for machining steel,aluminum,stainless steel,etc.

Main technical parameter and selection

1. Tank Volume                                                             905×635×550mm（300L）
2. Bulk Volume                                                              1049×635×1400mm
3. Screw Pump Installation Method                          Vertical Type
4. Lift Pump Parameter                                               Flow 4m³/h  Lift 30m
5. Pressure Regulator Type                                        Two-position Three-way Valve / Plate Pressure Regulator / Proportional Valve

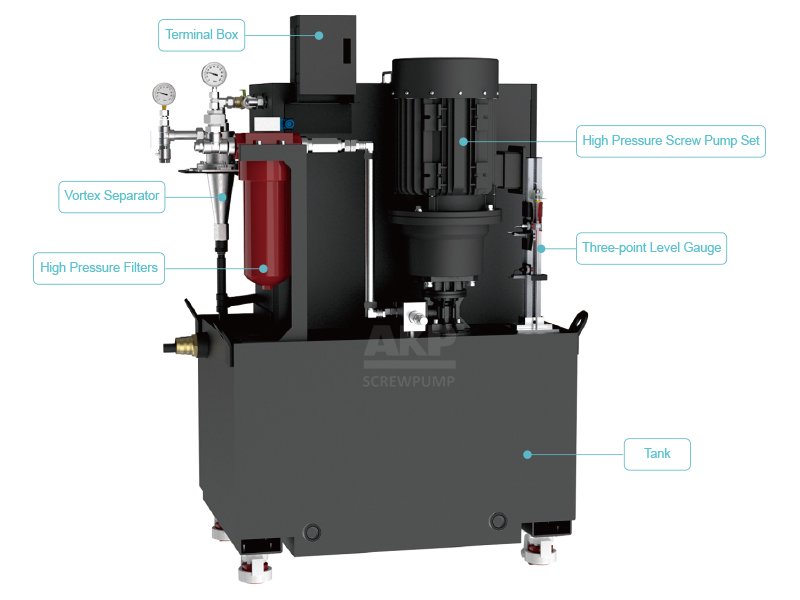

6. Filter Combination                                                   Vortex Separator+Handing Bag Filter+High Pressure Line Filter
7. Filtration Accuracy                                                   15μm +60μm
8. Control Mode                                                           Terminal Box / AKP Module / Integrated PLC
