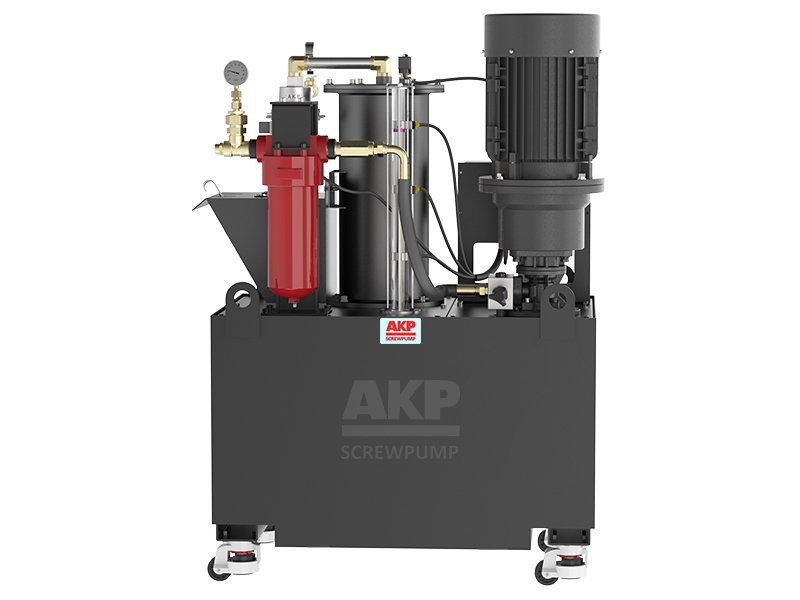

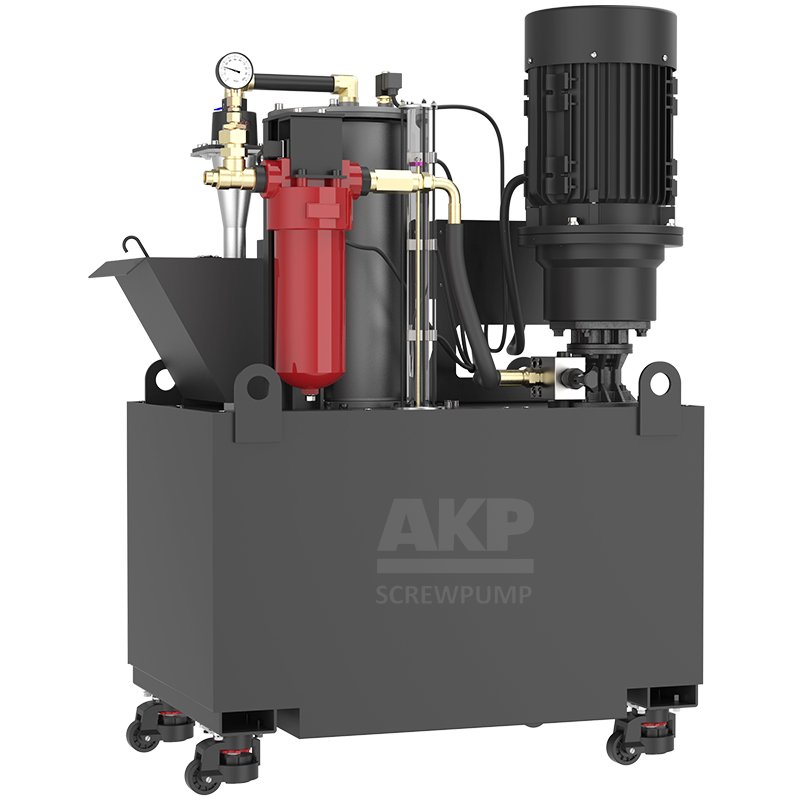

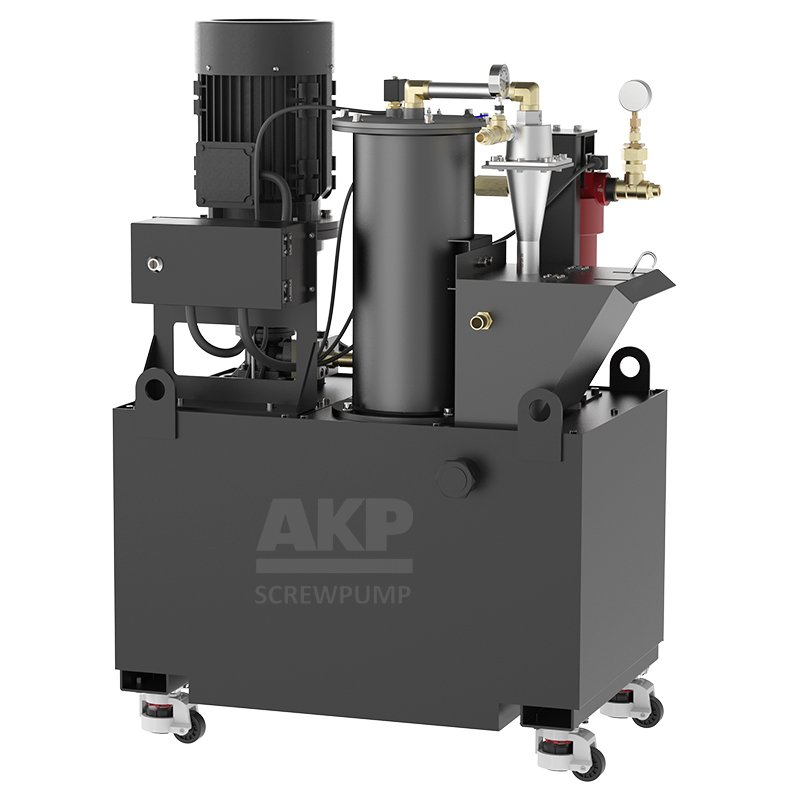

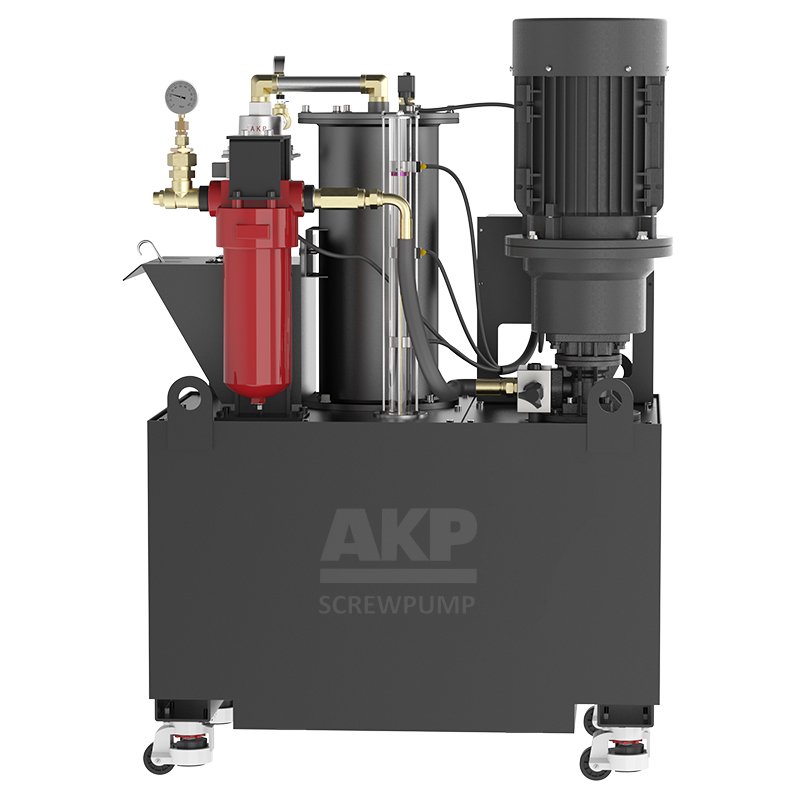

A3SS-XT10 High Pressure Coolant&Filtration Systems

Description

A3SS-XT10 Liquid Slag Collection High Pressure Coolant System, on the basis of XT2 configuration of different filtration combinations, liguid slag manual cleaning device can effectively prevent the secondary pollution of the debris discharge tank, the filter combination method of scroll separation and cloth bag is suitable for fine chips of aluminum,stainless steel and carbon steel, and is not suitable for powdery chips.

Typical application scenario

Suitable for heavy chipping conditions, compartment self-precipitation water tank structure. Compatible with vertical/horizontal machining centers, turning and miling compound production lines, five-axis inkage machine tools, suitable for processing steel parts, aluminum parts, and stainless steel parts.

Main technical parameter and selection

1. Tank Volume                                                             900×600×550mm（300L）
2. Bulk Volume                                                              900×600×1300mm
3. Screw Pump Installation Method                          Vertical Type
4. Lift Pump Parameter                                               Flow 4m³/h  Lift 30m
5. Pressure Regulator Type                                        Two-position Three-way Valve / Plate Pressure Regulator / Proportional Valve

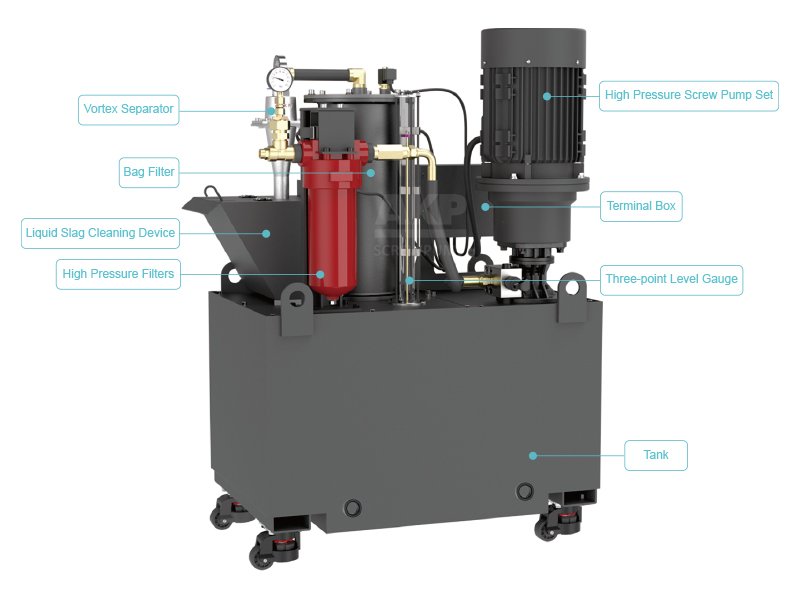

6. Filter Combination                                                   Vortex Separator+Bag Filter/Hanging Bag Filter
7. Filtration Accuracy                                                   25μm +10μm
8. Control Mode                                                           Terminal Box / AKP Module / Integrated PLC
