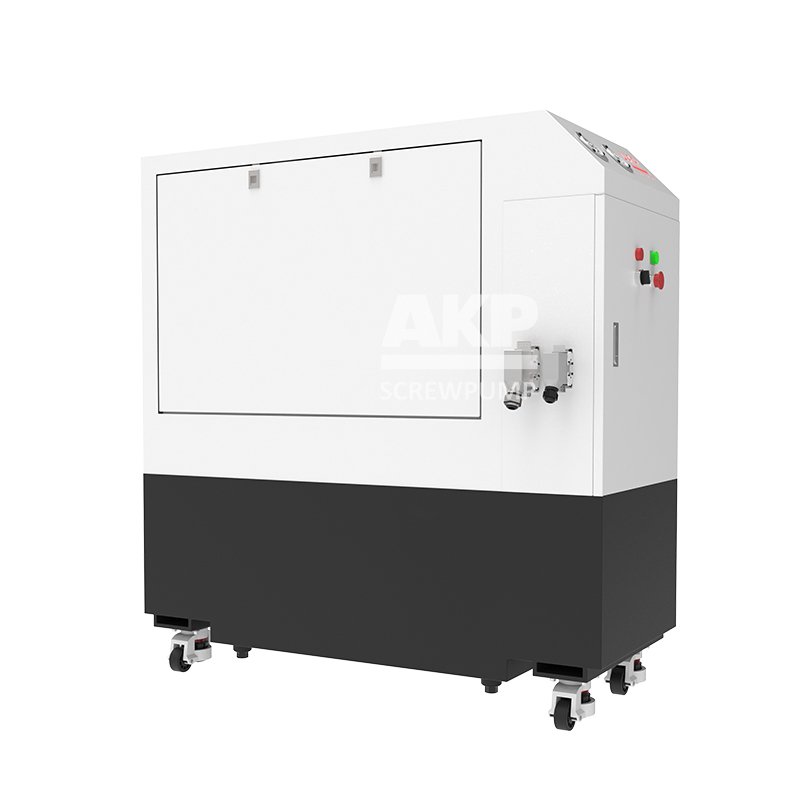

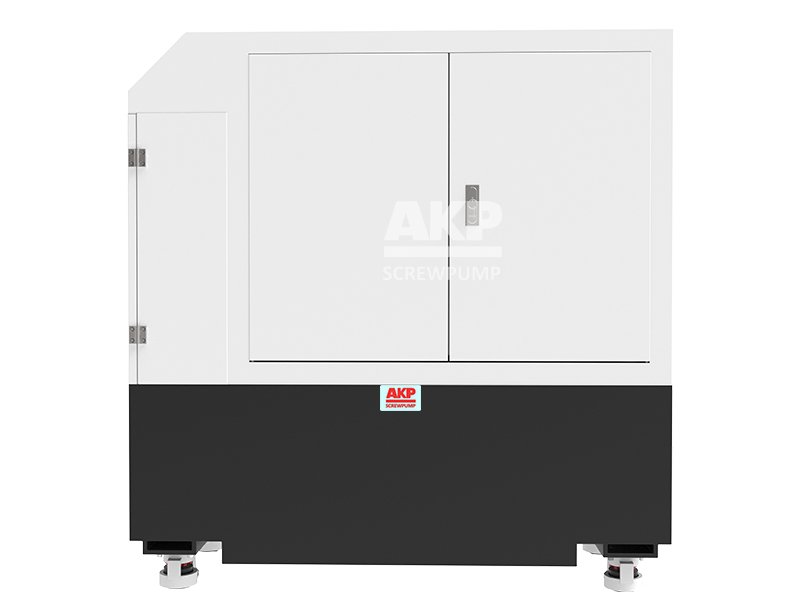

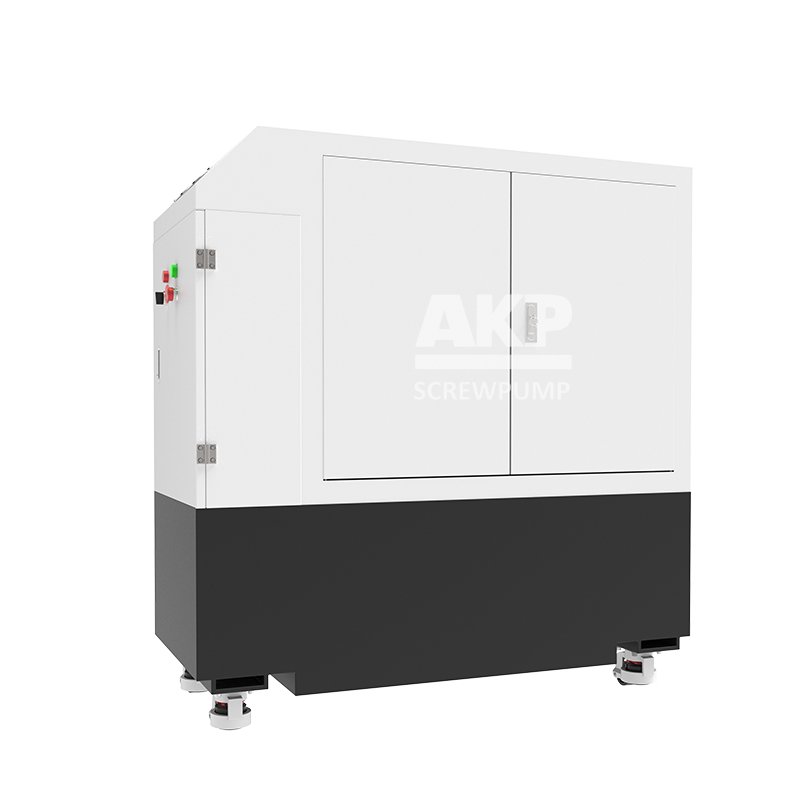

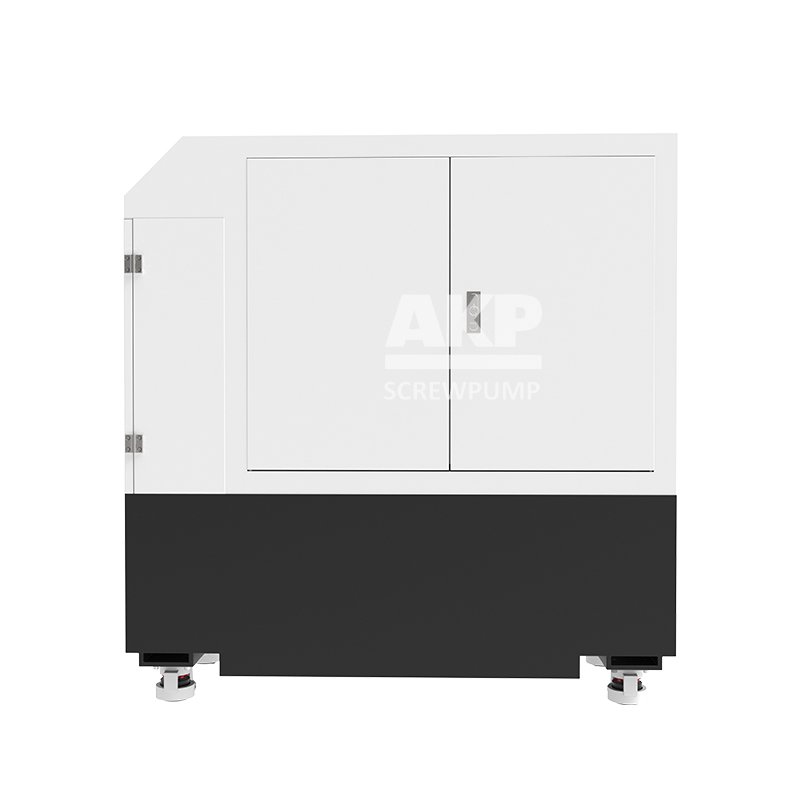

A3SS-XT1 High Pressure Coolant&Filtration Systems
A3SS-XT1 Cabinet High Pressure Coolant System.Equipped with the A3MT-E series triple-screw pump, the maximum pressure can reach 150 bar, and the flow rate ranges from 10 to 1000 L/min.
Description
AS33-XT1 cabinet system, simple and beautiful design, easy to maintain andmaintain, compact design takes up little space, very friendly for compact processingsites, configuration is not reduced at all. There is almost no noise during operation,thanks to the working mode of the high-pressure screw pump. in automated workshops used in large quantities, the noise level is also within a reasonable range.System modular design, can be configured electric control cabinet can also beattached to the machine tool operation.
Typical application scenario
Provide machine tool with the same color spraying scheme, compatible with 8L/min-35L/min high pressure cooling pump, batch parts continuous processing production line, rough processing and finishing can be used, can be used as a central outlet water system can also be used as high pressure chip breaking
Main technical parameter and selection
- Tank Volume 1250×500×500mm（310L）
- Bulk Volume 1500×600×500mm
- Screw Pump Installation Method Vertical Type
- Lift Pump Parameter Flow 4m³/h Lift 30m
- Pressure Regulator Type Two-position Three-way Valve/Plate Pressure Regulator/Proportional Valve

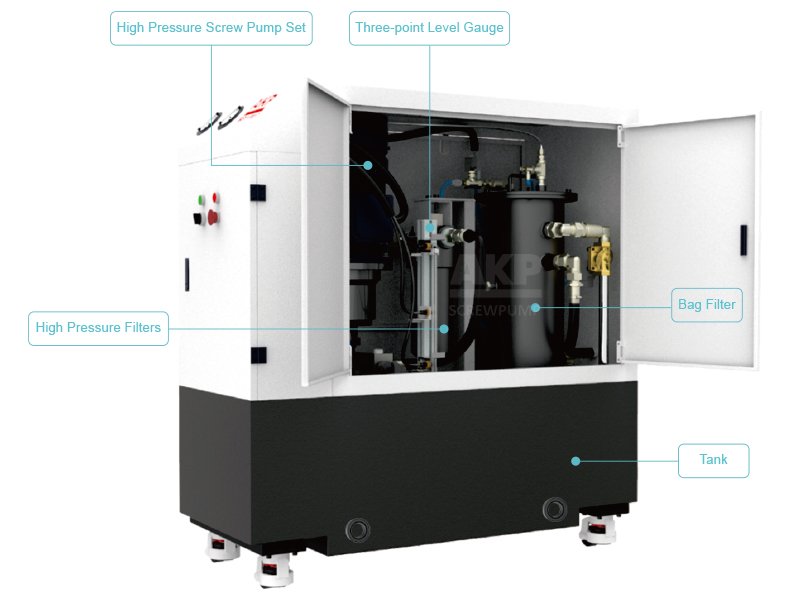

- Filter Combination Vortex Separator+Bag Filter+Line Filter
- Filtration Accuracy 25μm +10μm
- Control Mode Terminal Box/Machine Control
