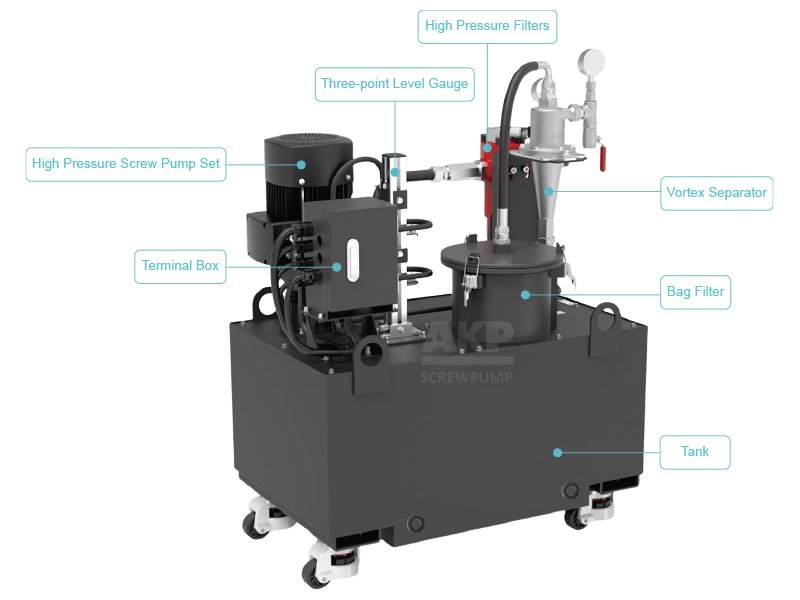

A3SS-XT0 High Pressure Coolant&Filtration Systems

Description

A3SS-XT0 30bar Open High Pressure Coolant System adopts the combination of A3NK-Z series triple screw pump various filtration methods, stable performance and reliable operation, combined with cost-effective performance is completely higher than other similar products, is a vertical machining center, horizontal machining center, gantrymachining center.CNC lathe standard choice.

Typical application scenario

Designed for rough working conditions of metal processing, suitable for carbon steel, stainless steel, aluminum and other materials efficient filtration needs, with small flow high pressure pump to achieve strong power output.

Main technical parameter and selection

1. Tank Volume                                                             625×580×380mm（138L）
2. Bulk Volume                                                              650×580×1100mm
3. Screw Pump Installation Method                          Vertical Type
4. Lift Pump Parameter                                               Flow 4m³/h  Lift 30m
5. Pressure Regulator Type                                        Two-position Three-way Valve/Plate Pressure Regulator/Proportional Valve
6. Filter Combination                                                   Vortex Separator+Bag Filter
7. Filtration Accuracy                                                   25μm Efficiency 98%+25μm
8. Control Mode                                                           Terminal Box/Machine Control
